将 IoT 盒子连接到你的数据库

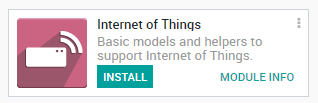

在你的 Odoo 数据库中安装物联网(IoT)应用

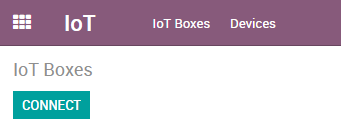

进入 IoT 应用并单击 IoT 盒子页面上的 Connect 链接。

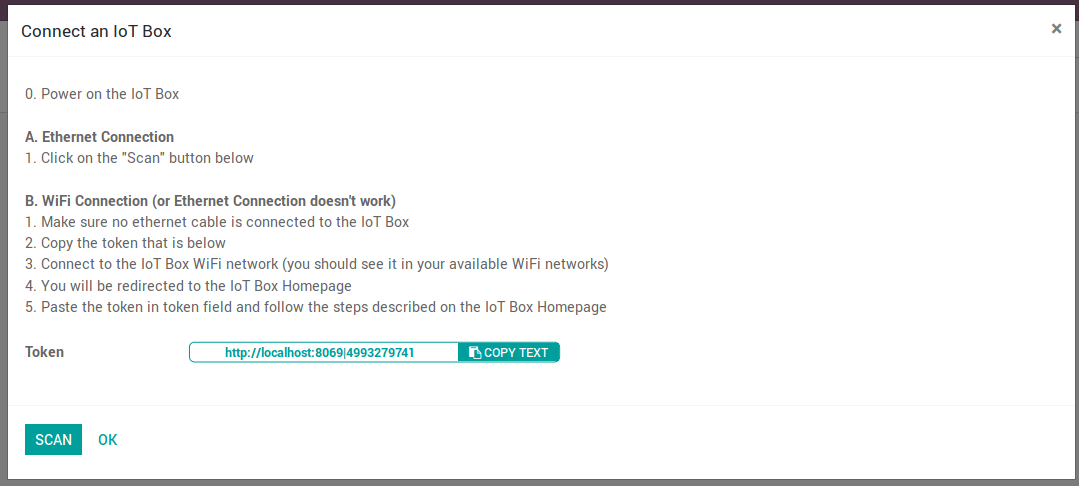

按步骤连接到你的 IoT 盒子。

以太网连接

  1. 将所有必须使用线缆连接的设备(如:网络、USB 设备等)插入 IoT 盒子。

  2. 打开 IoT 盒子的电源

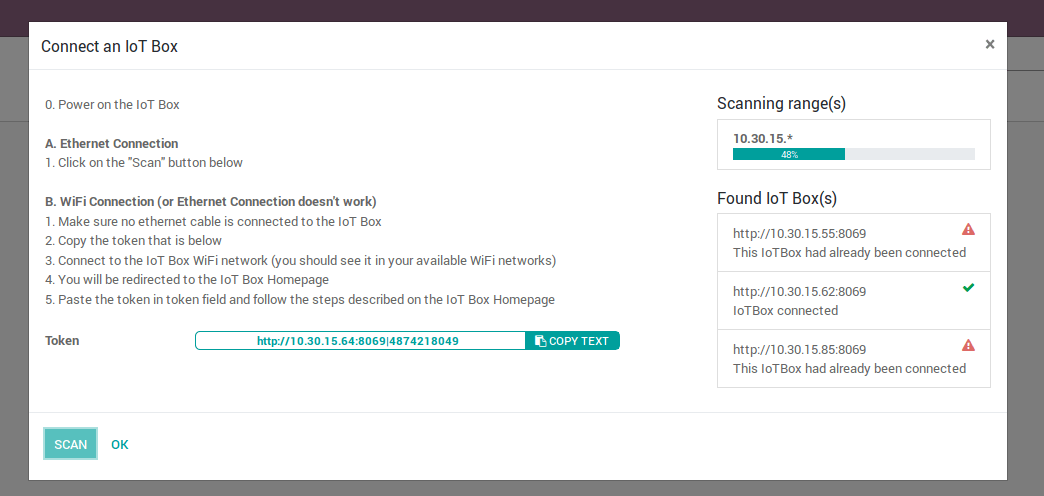

  3. 然后点击“扫描”按钮。

WiFi 连接

  1. 打开 IoT 盒子的电源

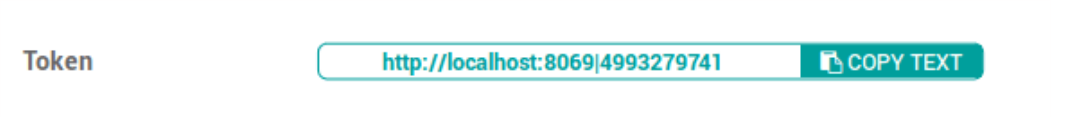

  2. 复制 Token

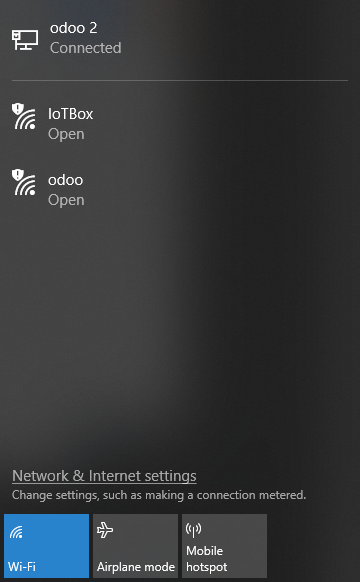

  1. Connect to the IoT Box WiFi Network (make sure there is no ethernet cable plugged in your computer).

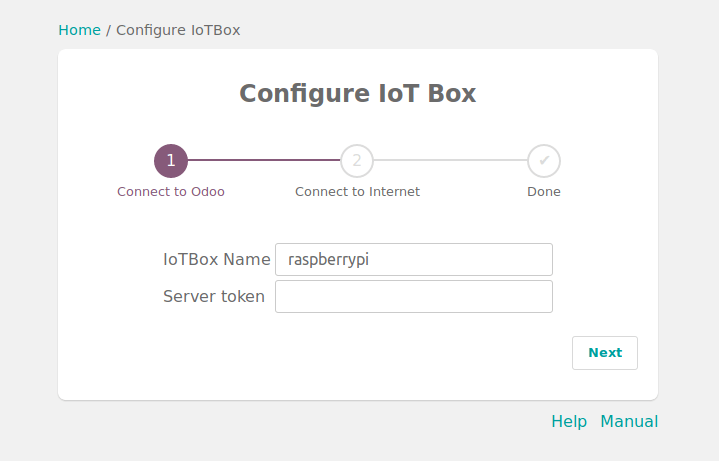

  1. You will be redirected to the IoT Box Homepage (if it doesn't work, connect to the IP address of the box). Give a name to your IoT Box (not required) and paste the token, then click on next.

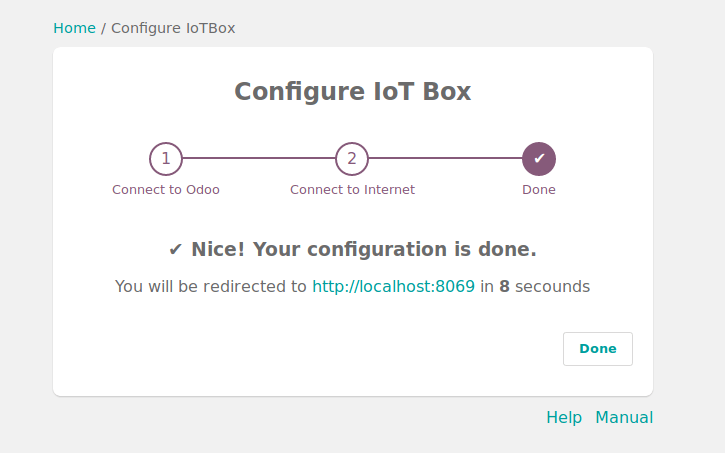

  1. Choose the WiFi network you want to connect with (enter the password if there is one) and click on Submit. Wait a few seconds before being redirected to your database.

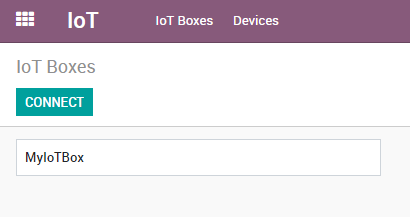

You should now see the IoT Box.

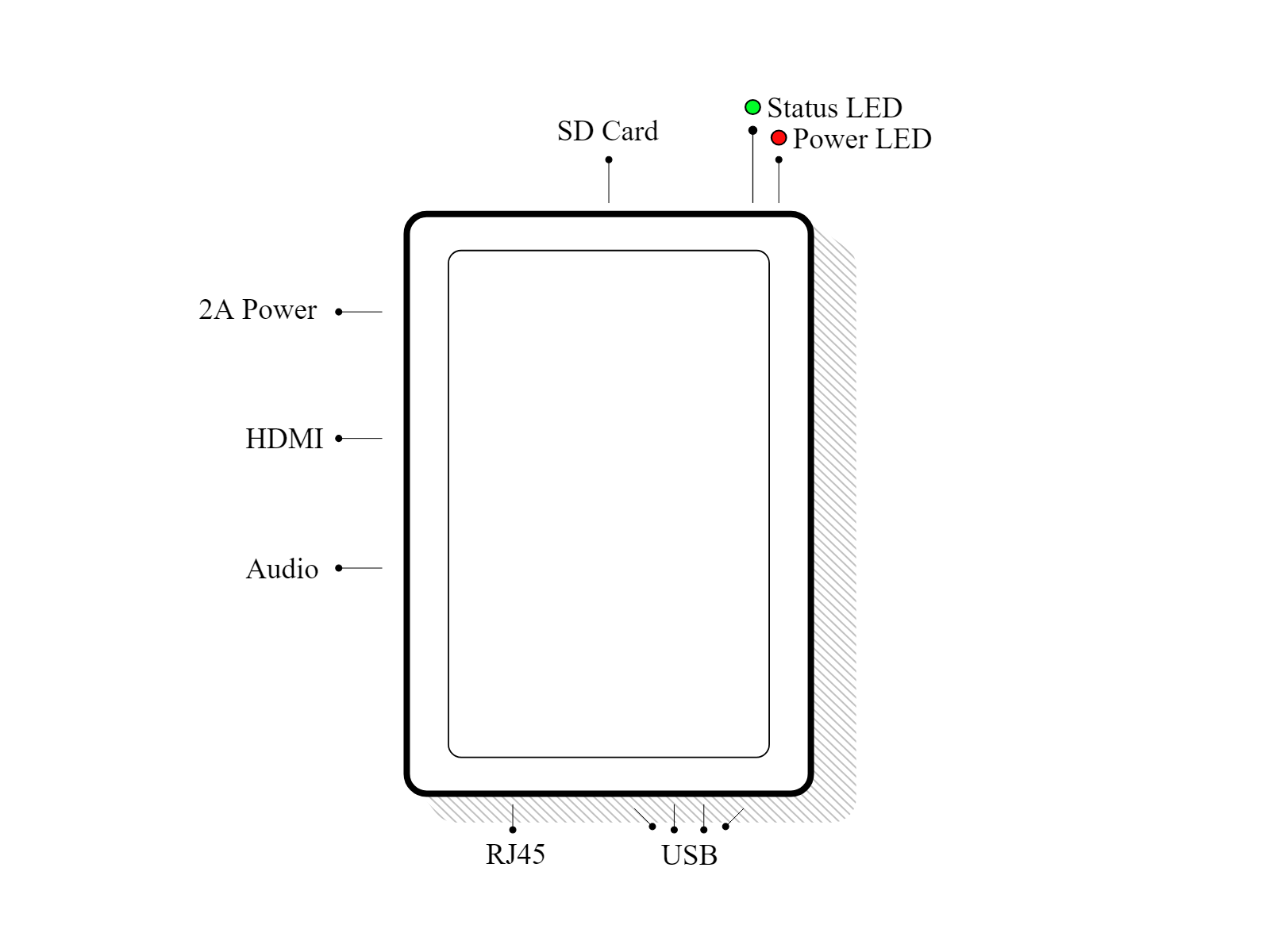

IoT Box Schema
